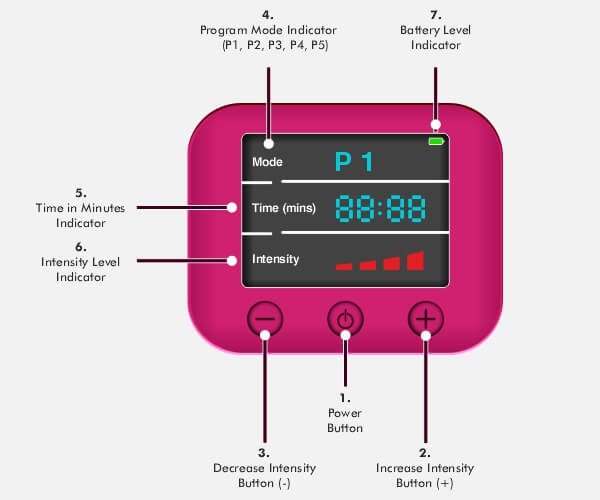

Controls and Interface
How to Operate ekegel
- Power Button
- Increase Intensity Button (+)
- Decrease Intensity Button (-)
- Program Mode Indicator (P1, P2, P3, P4, P5)
- Time in Minutes Indicator
- Intensity Level Indicator
- Battery Level Indicator
Want to know more about how to operate?
Just download brochure...
Controls and Interface
Increase Intensity Button (+)
Decrease Intensity Button (-)
Program Mode Indicator (P1, P2, P3, P4, P5)
Time in Minutes Indicator
Intensity Level Indicator
Battery Level Indicator
Operating ekegel
- Charge the Device: Before the first use, ensure your ekegel device is fully charged for approximately 6 hours.
- Power On: Hold the power button for 3 seconds to turn on the device.
- Select Program Mode: Upon powering on, the display will illuminate, and the MODE indicator (4) will begin blinking. Use the + change button (2) to cycle through programs P1, P2, P3, P4, and P5. Use the – change button (3) to change programs in reverse order.
- Confirm Program Selection: Once you’ve chosen the desired program, press the Power Button (1). The Time Indicator (5) will start blinking.
- Set Time Duration: The default time duration is displayed as 20:00 mins. Adjust the time using the + and – change buttons (2 and 3). Press the Power Button (1) to confirm the selected time.
- Set Intensity: The Intensity Indicator (6) will start blinking. Adjust the intensity level using the + and – change buttons (2 and 3).
- Connect Accessories:
- For Vaginal Probe Modes (P1 to P4): Connect the lead wire to the device and the probe to the lead wire. Insert the probe into the vagina, similar to inserting a tampon, until only the plastic rim ( Flange ) is visible. Lubricate the probe if necessary.
- For Electro Pad Mode (P5): Connect the lead wire to the device and the electro pad to the lead wire. Place the electro pad on the ankle area after cleaning it.
- Start Session : Press the Power button again to start the session. The time duration will begin counting down.
- Adjust Intensity : During the session, adjust the intensity level using the + and – change buttons (2 and 3) as needed for comfort and effectiveness.
- Complete Session : Once the session is complete, turn off the device by holding the power button for 5 seconds.
Additional Notes
- The device will enter sleep mode after 5 minutes of inactivity and power off after 10 minutes.
- Upon powering on, the device will automatically select the last used program and intensity settings.
- Increase intensity gradually, especially during the first use, until you feel the desired sensation.
- Follow proper hygiene practices, especially when using the vaginal probe.
- Consult the user manual for detailed instructions and safety guidelines.
Preparing for Session (Mode P1-P4)
- Visit the toilet before using ekegel.
- Clean the probe with an alcohol-free antibacterial wipe or soapy water.
- Lubricate the metal electrode surfaces and probe tip with a water-based lubricant or water.
- Choose a comfortable position for insertion.
- Ensure the device is switched off before inserting the probe.
- Insert the probe securely into the vagina, avoiding stimulation of sensitive tissues.
- Align the probe correctly for optimal contact with the pelvic floor muscles.
- The probe should not be inserted fully into the vagina, and the flange should remain outside.
When to Use
Initially, use daily for 20-40 minute sessions for 12 weeks, then reduce to 1-2 times a week based on your condition and healthcare provider’s recommendation.
Charging
- Monitor battery level using the battery indicator.
- Charge the device using the provided USB charging cable.
- A full charge takes approximately 1-2 hours and lasts 10-14 hours.
- Fully charge the device at least once a month to maximize battery life.
